Marelli IWP069 · Serviced & Flow-Tested

Mercury MerCruiser 350 / 454 / 502 MAG MPI Fuel Injector Cleaning & Flow Testing

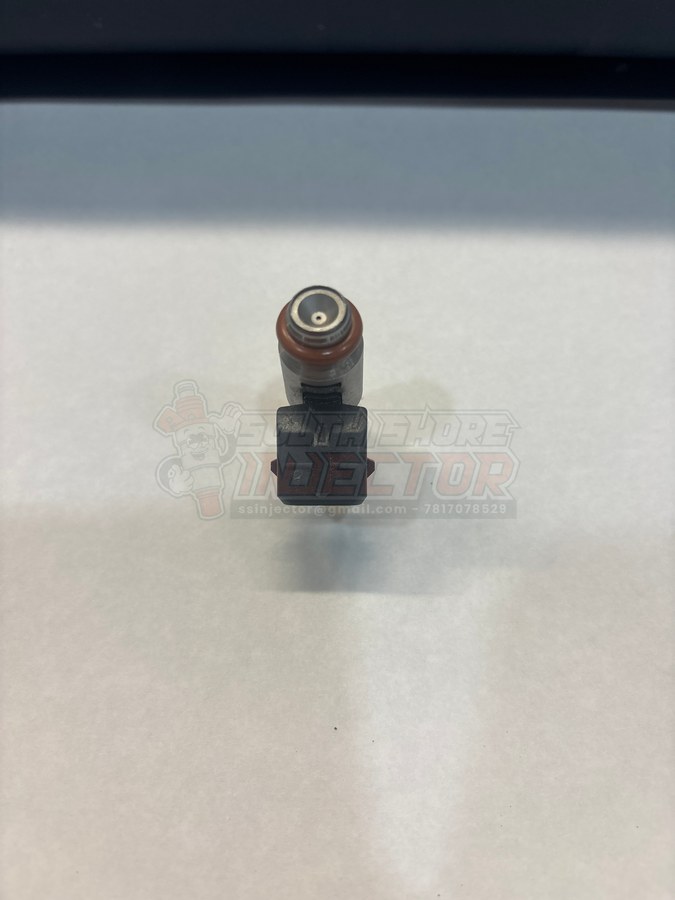

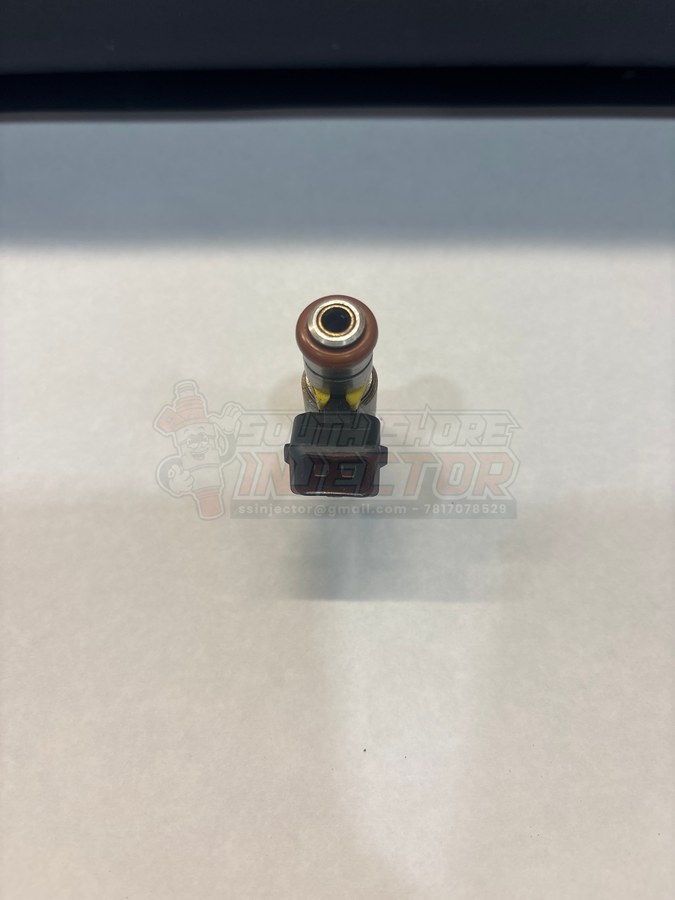

The Marelli IWP069 is a MPFI (port injection) fuel injector used in Mercury MerCruiser 350 MAG MPI, 454 MAG MPI, 502 MPI, 6.2L MPI, 8.2L MPI (1998-2002); Harley-Davidson; Ducati superbikes. We ultrasonic-clean and flow-test injectors like this one in our shop, then send back before-and-after data so you know exactly what you're getting.

ManufacturerMarelli
Part numberIWP069
TypeMPFI (port injection)
ConnectorEV1 (Jetronic Cone, single-hole disc at 15°)
Published flow480 cc/min @ 3 bar
46 lb/hr
Published impedance13.7 Ω

Our measured results

These are the actual before-and-after numbers from our flow bench for the Marelli IWP069 — not published estimates.

Tested in our shop8 injector(s) @ 40.0 psi
Measured coil (avg)14.59 Ω
10s open flow (avg)73.14 → 72.0 ml (-1.6%)
60s pulsed flow (avg)81.14 → 73.14 ml
Leak test after cleaning7/8 PASS

Also known as / cross-references

The Marelli IWP069 is interchangeable with or cross-references to these part numbers:

861260T (Mercury OEM)IWP-069

What vehicles use the Marelli IWP069?

Mercury MerCruiser 350 MAG MPI, 454 MAG MPI, 502 MPI, 6.2L MPI, 8.2L MPI (1998-2002); Harley-Davidson; Ducati superbikes

Our bench record on the IWP069

We’ve flow-tested 41 Marelli IWP069 injectors across 6 customer jobs since October 2022. 0 of them (0%) came in flowing more than 10% under their own clean flow, and every one passed the leak test after cleaning. Every job, oldest first (open flow is the 10-second average per set):

JobInjectorsTest psiAvg flow before → afterCame in lowLeak test after
Oct 202264580.0 → 81.3 ml0 of 66/6
May 202674073.1 → 71.9 ml0 of 77/7
Jun 202674074.9 → 74.3 ml0 of 77/7
Jul 202664074.2 → 75.3 ml0 of 66/6
Aug 202674077.9 → 77.4 ml0 of 77/7
Sep 202684077.2 → 76.8 ml0 of 88/8

How we service the Marelli IWP069

Ultrasonic clean, backflush, before-and-after flow and leak test, spray check, tested at 40 psi, new seals and filter baskets where available. Full process on our services page.

Frequently asked questions

What did the IWP069 flow at on your bench?
On our bench, 8 IWP069 injectors averaged 73.14 ml open flow before cleaning and 72.0 ml after, tested at 40.0 psi.
How often does a IWP069 come in dirty?
Of the 41 IWP069 injectors we've tested across 6 jobs, 0 (0%) came in flowing more than 10% under what they flowed once clean.
